Aluminum coil

Aluminum Coil is a versatile and widely used material that is known for its strength, durability, and versatility. It is made from aluminum, a lightweight and corrosion-resistant metal that is abundant in nature and can be easily extracted. Aluminum Coil comes in a range of thicknesses, sizes, and finishes, making it a versatile material that can be used for a variety of applications.

The company has sufficient inventory and can be picked up at any time.

Contact Us

Chat Now

PRODUCT DESCRIPTION

Aluminum coil is a metal product for flying shear after rolling and bending corner processing by casting and rolling mill. Widely used in electronics, packaging, construction, machinery, etc., the production process has caught up with developed countries.

Model Number : 1000,2000,3000,4000,5000,6000,7000 SERIESApplication : Decorations, Heat Sink, Door & Window, Glass WallWidth : 500-3000mmAlloy Or Not : AlloyGrade : 1050 1060 1100 3004 5052 6061...Surface Treatment : CoatedTemper : T3 - T8
Product Name:	Aluminum coil
Thickness:	0.12mm-10mm
Width:	50mm-1500mm
Zinc Thickness:	15-25 mic
Standard:	GB/T 3880.3-2012, ASTM B209, JIS4000, EN485
Surface treatment:	Polished, mirror finish.
Function:	Anti-static, fireproof, insulation, heat preservation, etc.
Packing:	Standard fumigated wooden package or as customer's requirement
Delivery time:	Within 30 days after receiving 30% deposit or copy of LC at sight.
Supply Ability:	50000MT per month.
Application:	Widely used in construction, building, exterior decoration, chemical equipment, cookware, billboard, household
Application:	wares, welding parts, reflective devices, sheet metal processing parts, shutter system, container, etc.
Mechanical Property
ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm	Yield StrengthN/mm	Elongation%		Brinell HardnessHB
ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm	Yield StrengthN/mm	Plate	Bar	Brinell HardnessHB
1XXX	1050	O,H112,H	O	78	34	40	-	20
1XXX	1060	O,H112,H	O	70	30	43	-	19
Al-Cu(2XXX)	2019	O,T3,T4,T6,T8	T851	450	350	10	-	-
Al-Cu(2XXX)	2024	O,T4	T4	470	325	20	17	120
Al-Mn(3XXX)	3003	O,H112,H	O	110	40	30	37	28
Al-Mn(3XXX)	3004	O,H112,H	O	180	70	20	22	45
Al-Si (4XXX)	4032	O,T6,T62	T6	380	315	-	9	120
Al-Mg(5XXX)	5052	O,H112,H	H34	260	215	10	12	68
Al-Mg(5XXX)	5083	O,H112,H	O	290	145	-	20	-
Al-Mg-Si(6XXX)	6061	O,T4,T6,T8	T6	310	275	12	15	95
Al-Mg-Si(6XXX)	6063	O,T1,T5,T6,T8	T5	185	145	12	-	60
Al-Zn-Mg(7XXX)	7003	T5	T5	315	255	15	-	85
Al-Zn-Mg(7XXX)	7075	O,T6	T6	570	505	11	9	150

chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si + Fe		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	margin

Annealing state

Trademark	Annealing state
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Application scope

Aluminum uses and application areas
Food packaging	Beverage can ends, cans, bottle caps, etc.
architecture	Curtain walls, cladding, suspended ceilings, insulation, Venetian blinds etc.
Transportation	Auto parts, bus bodies, aviation ships and air cargo containers, etc.
Electronic equipment	Electrical appliances, communication equipment, PC board drilling guides, lighting and heat dissipation materials, etc.
consumer goods	Parasols, cooking utensils, sports equipment, etc.
other	Military, color-coated aluminum plate

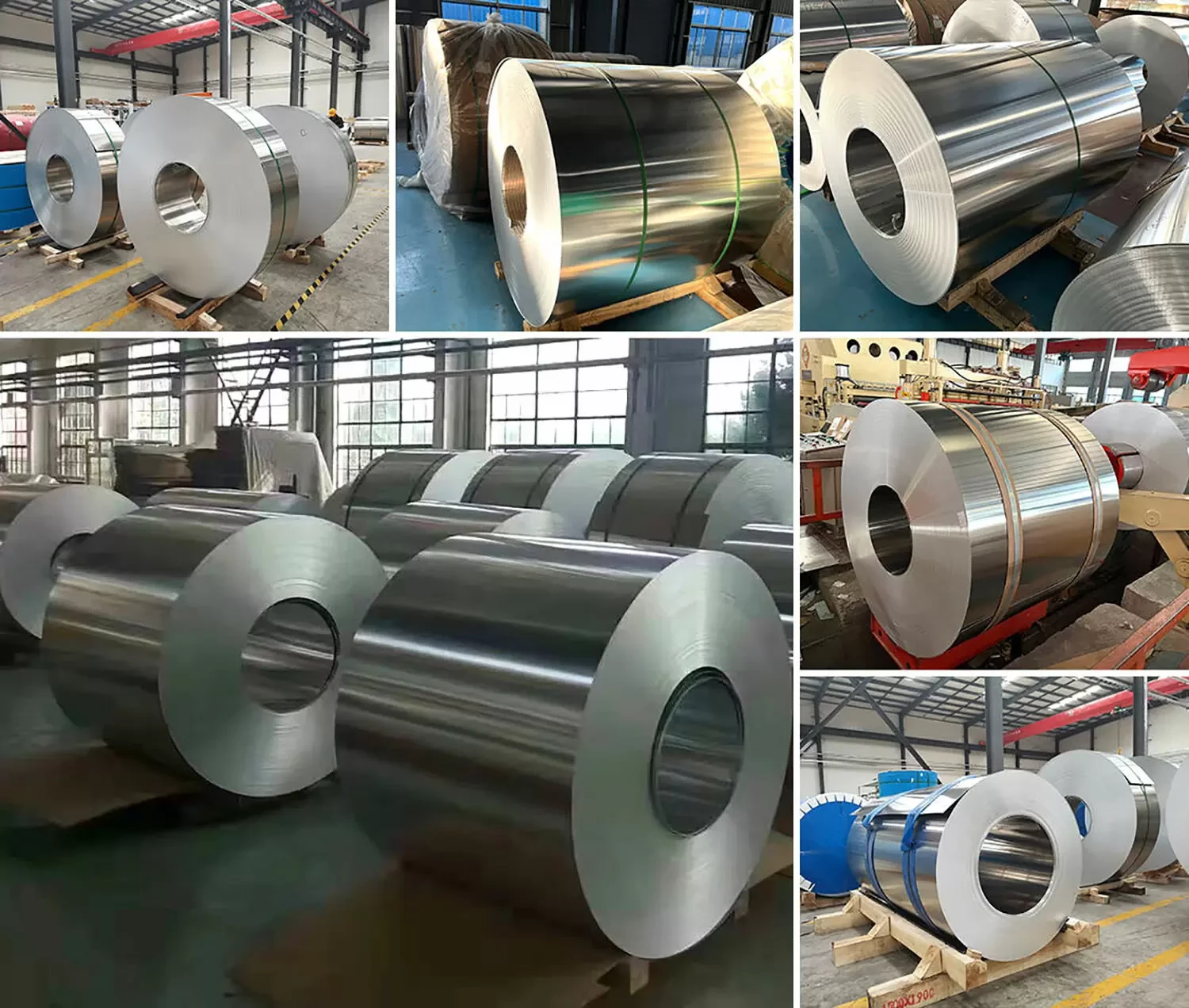

PRODUCT DISPLAY
